v5.0 Advanced Misting System (3/8" Backbone)

MistKing Advanced Misting System – 5th Generation
High-Capacity Misting Backbone for Large-Scale Setups

Tailored for large-scale misting projects, the MistKing Advanced Misting System (5th Gen) serves as a powerful backbone kit—ready to run right out of the box or fully customized to your needs. Engineered on a 3/8" backbone, it supports between 20 to 70+ nozzles, making it ideal for commercial growers, zoo exhibits, and multi-tank hobbyist installations. Unless you're going to exceed 15-20 nozzles, we do not recommend upgrading to this misting system.

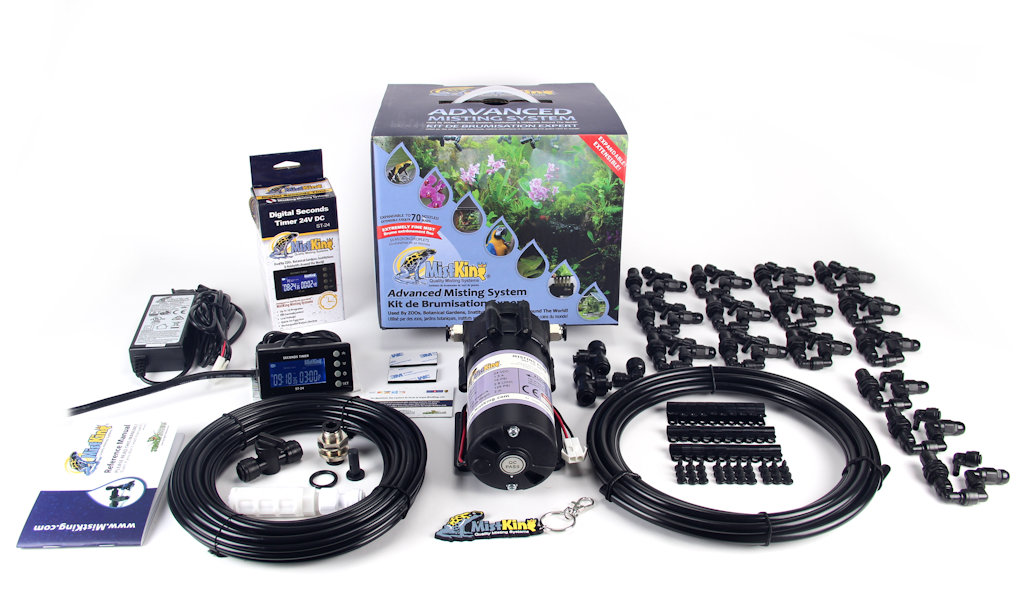

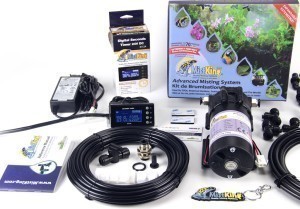

Items included with the Advanced Misting System. All items can be customized by selecting from the right.

What’s New in 5th Gen?

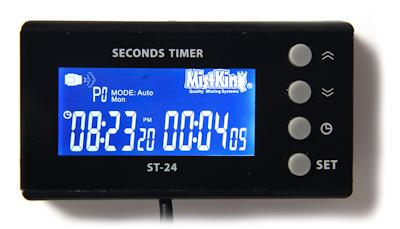

1. Enhanced Timer Electronics
   Timers now feature 3× the electrical rating of previous models, ensuring flawless misting during power surges and high-load cycles.  This is key with a high inductive load of this pump and frequent starts and stops.  With larger pumps, most low end timers tends to suffer damage to the electronics by being overloaded.

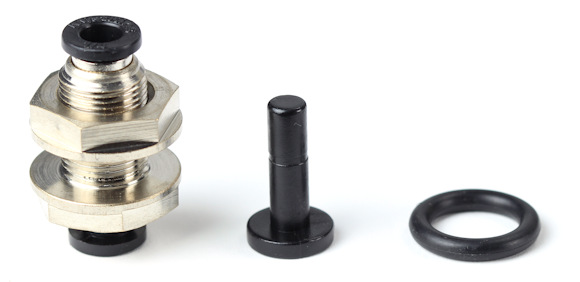

2. Heavy‑Duty Metal Reservoir Bulkhead
   Custom-designed for MistKing advanced system, this 3/8" bulkhead withstands extreme tightening without stripping, similarly to 1/4" version used on starter and ultimate systems. Even tested to squeeze a bucket without using an o-ring and achieved perfect seal.  Nevertheless use an o-ring for added security.

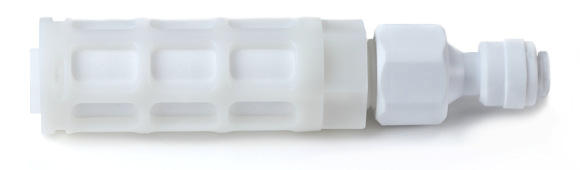

3. High-Visibility Reservoir Filter
   White filter housing highlights debris build-up instantly making it obvious when cleaning is needed, preventing nozzle clogs and maximizing uptime.

Why It Excels in Large-Scale Applications

• Massive Nozzle Capacity: 3/8" backbone tubing and a 125 psi pump deliver high-flow misting for 10–70+ nozzles, Actual number of nozzles depends on setup design and complexity of the system.
• Continuous Operation: High-capacity diaphragm can run longer cycles and even run dry safely. perfect for longer misting cycles in large scale or commercial environments or greenhouses.
• Flexible Control Options: Choose from ST‑24, RCT‑24, or HT‑24 controllers to tailor misting for your needs, Visit our timer page for more information.
• Quiet Under Load: Vibration‑dampening feet and robust pump design keep noise levels minimal, even during extended use.

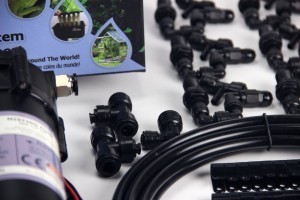

 The Advanced Misting System v5.0 includes

• Large capacity diaphragm pump with 3/8" fittings.
• Power adapter  (CE and cUL listed)

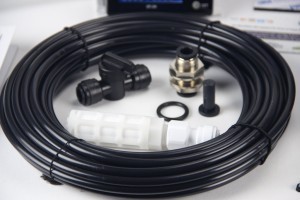

• 3/8" metal reservoir bulkhead with plug
• 3/8" Ball Valve
• 35 feet of 1/4" black opaque tubing (to connect nozzles)
• 15 feet of 3/8" black opaque tubing (to connect reservoir to pump and run nozzle 3/8" backbone)
• 12 Value "T" Misting Assemblies
• 3 Value "L" Misting Assemblies
• 2 Reducing Tee Connections (3/8" to 1/4")
• 1 Reducing Elbow Connections (3/8" to 1/4")
• 20 1/4" Tubing Clips
• 10 3/8" Tubing Clips

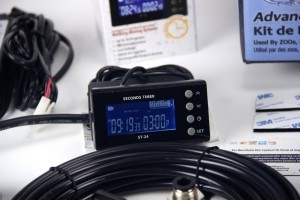

• Upgraded Seconds timer ST-24
• 3/8" Reservoir filter
• Installation instructions

Suggestions / Tips:

Want to use more nozzles?

While this kit can be used as is so long that you have a suitable sized reservoir, If you intend to use more nozzles we recommend extending the 3/8" tubing backbone and adding extra Reducing Tee connections and then splitting into 1/4" lines that will feed the individual misting assemblies. Alternatively you can use a 7 port or 11 port manifold fed by 3/8" tubing or a combination of both. (Note: These 7 and 11 ports are sold on our North American Website)

How can I customize my MistKing Advanced System for my needs?

We suggest using this kit as the backbone for a custom misting system. Just add parts, nozzles, tubing and expand on this work horse.

NOTE: If you need help designing a system that will fit your particular situation, please contact us. Hobbyists, ZOOs and institutions run their entire animal and plant rooms based on this kit or multiple kits.

Why Choose MistKing?

MistKing systems are used globally by zoos, botanical gardens, universities, breeders, and passionate hobbyists. They're perfect for:

• Reptile & amphibian enclosures (chameleons, dart frogs, geckos etc..)
• Orchid and tropical plant setups
• Hobby greenhouses
• and many more!

Don’t just take our word for it — see what other customers are saying.
Real feedback from hobbyists, breeders, and pros who rely on MistKing every day.

Ready to Create Your Ideal Custom Misting Solution?

Order the MistKing Advanced Misting System now and build a scalable, professional-grade misting solution—perfect for large exhibits, greenhouses, and multi-tank setups.

Warranty Information:

Standard (included):  2 years pump.  1 year parts.

Extended (optional): 4 years pump. 2 years parts.

Note: Nozzle tips warrantied only for purchase, due to the fact these can clog due to user error and poor water quality.
